Hurricane Relay and fuse box RB11-W (Wall mounting)
Hurricane Motorsport
Reviews
Help others choose right. Be the first to write a review!

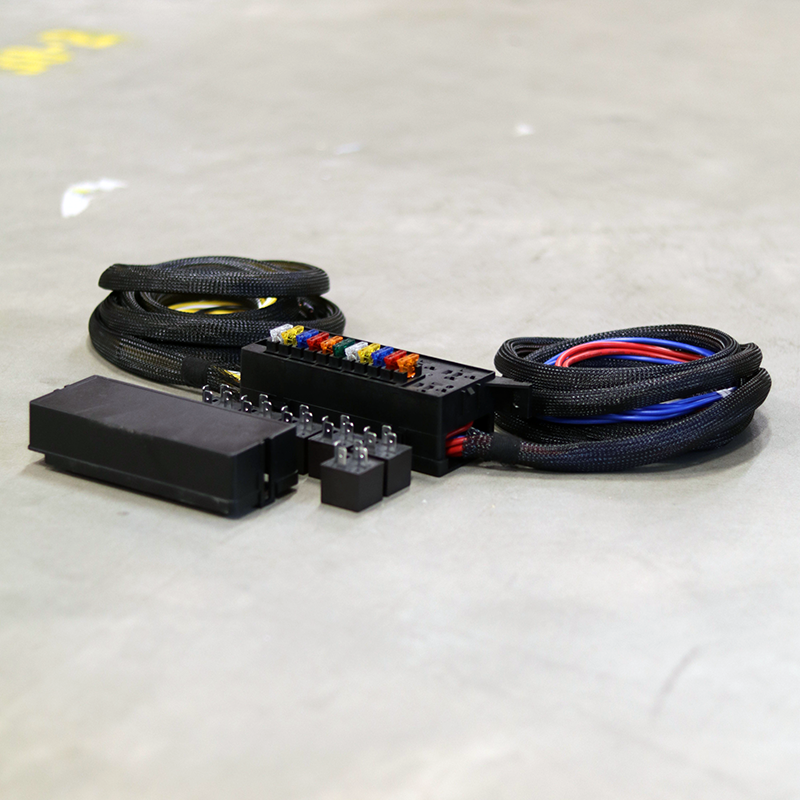

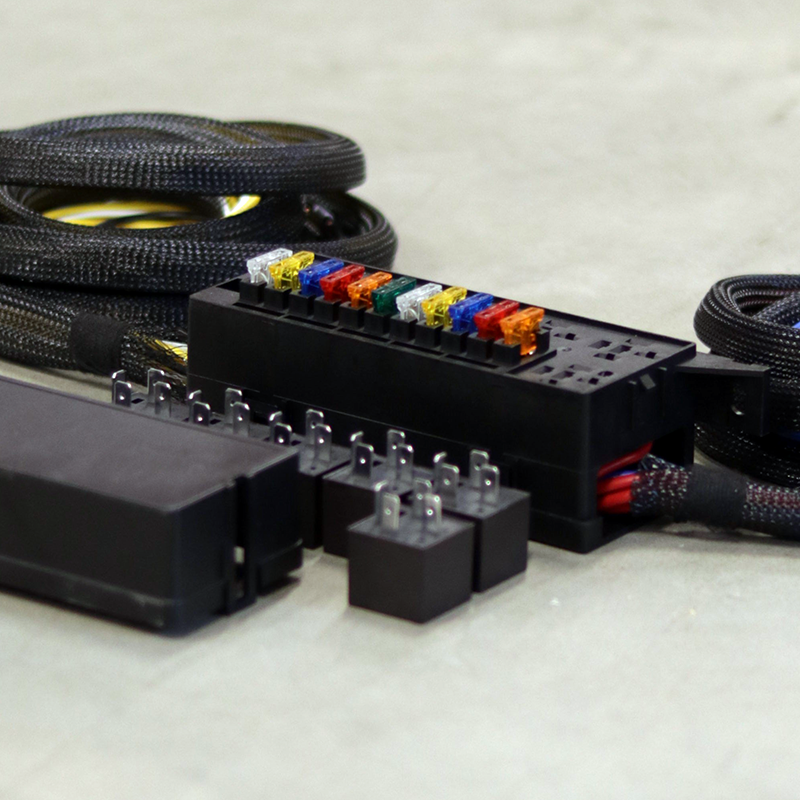

Write a reviewHurricane Relay and Fuse Box RB11-W
The Hurricane RB11-W is a wall-mounted relay and fuse box with labelled cables for easy and professional installation of consumers and control systems.
The RB11-W is a universal relay and fuse box that can be connected to an ECU or switch to easily control consumers such as:
- Fuel pump
- Starter motor
- Cooling fan
- Cabin fan
- ECU
- Lighting
- Wipers
- Water pump
- Boost pressure
The fuse box contains:
- 6x 40A relays
- 11 fuses
- 190mm CC mounting hole (offset)
- 2x 3-meter cable mat
- Labeled cables
- Cable protection
- Dimensions: L:210mm W:70mm H:87mm
Wiring:
Into the fuse box:
3x Red 4mm2 to battery (+)
1x Black 1.5mm2 to battery (-)
Out of the fuse box:
6x Yellow 2.5mm2 Relay to consumer (+)
5x Blue 2.5mm2 Fuse to consumer (+)
Relay trigger:
6x White 0.75mm2 relay trigger (-)
Suitable connectors are linked below for easy installation
----------------
