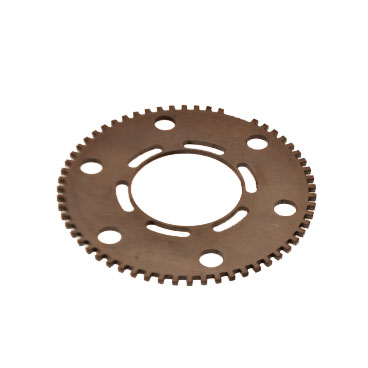

Trigger wheel 153 / 65mm (60-2)
Universal
Reviews
Help others choose right. Be the first to write a review!
Write a reviewTrigger wheel 153 / 65mm (60-2)
Trigger wheel for which fits aftermarket ECU to get crankshaft signal. These are available in 36-1 or 60-2 resolution which is preset in all aftermarket control systems.
Used in conjunction with a Hall or VR sensor connected to the ECU. Mounting of the trigger wheel must be done on the crankshaft pulley / adapter.
The sensor is then mounted at a distance of about 0.5-1mm to the trigger wheel. The sensor should also be centered on the trigger wheel. If the gvar is mounted too far away or if the trigger wheel throws, the signal to the ECU will be worse.
Dimensions:
Outer diameter: 153mm
Inner diameter 65mm
Thickness: 3mm Material: steel
Teeth 60-2
Bolt circle CC: 76mm
Track width for M6 bolts
See picture for placement of sensors.
----------------
